In data centers, pluggable optical transceivers convert digital bits to photons, fling them throughout the room, after which flip them again to digital indicators, making them a technological linchpin to controlling the blizzard of knowledge utilized in AI. However the expertise consumes fairly a little bit of energy. In a knowledge heart containing 400,000 GPUs, Nvidia estimates that optical transceivers burn 40 megawatts. Proper now, the one option to cope with all that warmth is to hope you may thermally jointhese transceivers to the swap system’s case and funky that. It’s not an excellent answer, says Thomas Tarter, principal thermal engineer at startup xMEMS Labs, however as a result of these transceivers are in regards to the measurement of an overlarge USB stick, there’s no option to stick a standard cooling fan in every.
Now, xMEMS says it has tailored its upcoming ultrasonic microelectromechanical (MEMS) “fan-on-a-chip” to suit inside a pluggable optical transceiver so it drives air via and cools the transceiver’s major digital half, the digital signal processor (DSP). Preserving the DSP cool is crucial to its longevity, says Tarter. At upwards of US $2,000 per transceiver, getting an additional yr or two from a transceiver is nicely price it. Cooling also needs to enhance the integrity of the transceivers’ indicators. Unreliable hyperlinks are blamed for extending already prolonged coaching runs for brand spanking new large language models.
xMEMS’ Cooling Tech Finds a New House

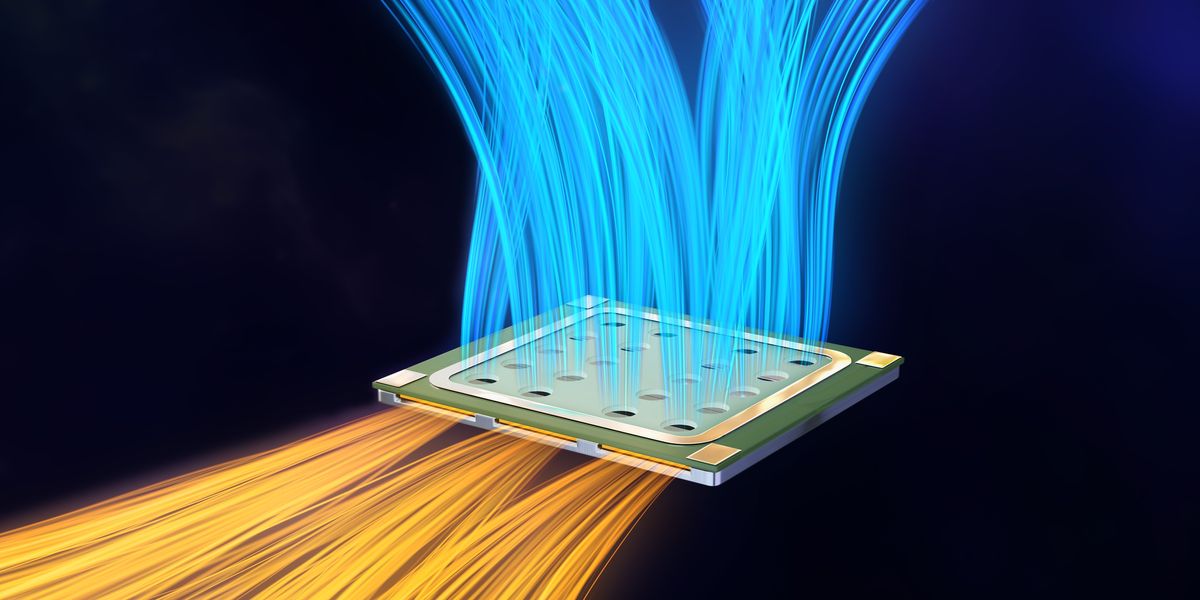

The xMEMS chip-cooling tech, which was unveiled in August 2024, builds on the corporate’s earlier product, solid-state microspeakers for earbuds. It makes use of piezoelectric materials that may change form at ultrasound frequencies to pump 39 cubic centimeters of air per second via a chip nearly a millimeter excessive and fewer than a centimeter on a facet.
Smartphones, that are too slim to carry a fan, had been the primary apparent utility for the MEMScooler, however cooling the fast-growing data-center-scale AI methods appeared out of attain for MEMS expertise, as a result of it could actually’t come close to to matching the liquid cooling systems eradicating 1000’s of watts of warmth from GPU servers.
“We had been pleasantly stunned by the method by data-center prospects,” says Mike Housholder, xMEMS vp of selling. “We had been centered on low power. So we didn’t suppose we had a slam dunk.”
Pluggable optical transceivers become a data-center expertise that’s squarely within the fan-on-a-chip’s wheelhouse. Right now, warmth from a transceiver’s DSP, photonics IC, and lasers is thermally coupled to the community swap computer systems they’re plugged into. (These often sit on the prime of a rack of computer systems.) Then air transferring over fins constructed into the swap’s face removes the warmth.
In collaboration with companions they might not identify, xMEMS started exploring the best way to get air flowing via the transceiver. These elements devour 18 watts or extra. However by situating the corporate’s MEMS chip inside an airflow channel that’s thermally related to the transceiver chips however bodily remoted from them, the corporate predicts it will likely be in a position to drop the DSP’s temperature by greater than 15 p.c.
xMEMS has been making prototype MEMS chips at Stanford’s nanofabrication facility, however it would have its first manufacturing silicon from TSMC in June, says Housholder. The corporate expects to be in full manufacturing within the first quarter of 2026. “That aligns nicely with our early prospects,” he says.
Transceiver shipments are rising quick, in accordance with the Dell’Oro Group. The market analyst predicts that shipments of 800-gigabit-per-second and 1.6-terabit-per-second elements will develop at greater than 35 p.c per yr via 2028. Different improvements in optical communications that would have an effect on warmth and energy are additionally within the offing. In March, Broadcom unveiled a new DSP that would result in a greater than 20 p.c energy discount for 1.6 Tb/s transceivers, due partly to the usage of a extra superior chip-manufacturing course of. The latter firm and Nvidia have individually developed network switches that do away with pluggable transceivers altogether. These new “co-packaged optics” do the optical/digital conversion on silicon inside the swap chip’s bundle.
However Tarter, who has been engaged on cooling chips because the Eighties, predicts there shall be extra purposes each inside and outdoors the info heart for the MEMS chip to return. “We’re studying quite a bit about purposes,” he says. “I’ve give you 20 or 30 primary purposes for it, and hopefully that evokes designers to say ‘Oh, that is how I can use this in my system.’”
