Researchers this month will start testing a high-voltage circuit breaker that may quench an arc and clear a fault with supercritical carbon dioxide fluid. The primary-of-its-kind machine might exchange standard high-voltage breakers, which use the potent greenhouse gas sulfur hexafluoride, or SF6. Such gear is scattered broadly all through power grids as a method to cease the move {of electrical} present in an emergency.
“SF6 is a incredible insulator, nevertheless it’s very dangerous for the surroundings—most likely the worst greenhouse gasoline you’ll be able to consider,” says Johan Enslin, a program director at U.S. Superior Analysis Tasks Company–Vitality (ARPA-E), which funded the analysis. The greenhouse warming potential of SF6 is sort of 25,000 occasions as excessive as that of carbon dioxide, he notes.
If profitable, the invention, developed by researchers on the Georgia Institute of Technology, might have a big effect on greenhouse gas emissions. Tons of of hundreds of circuit breakers dot energy grids globally, and almost the entire high voltage ones are insulated with SF6.

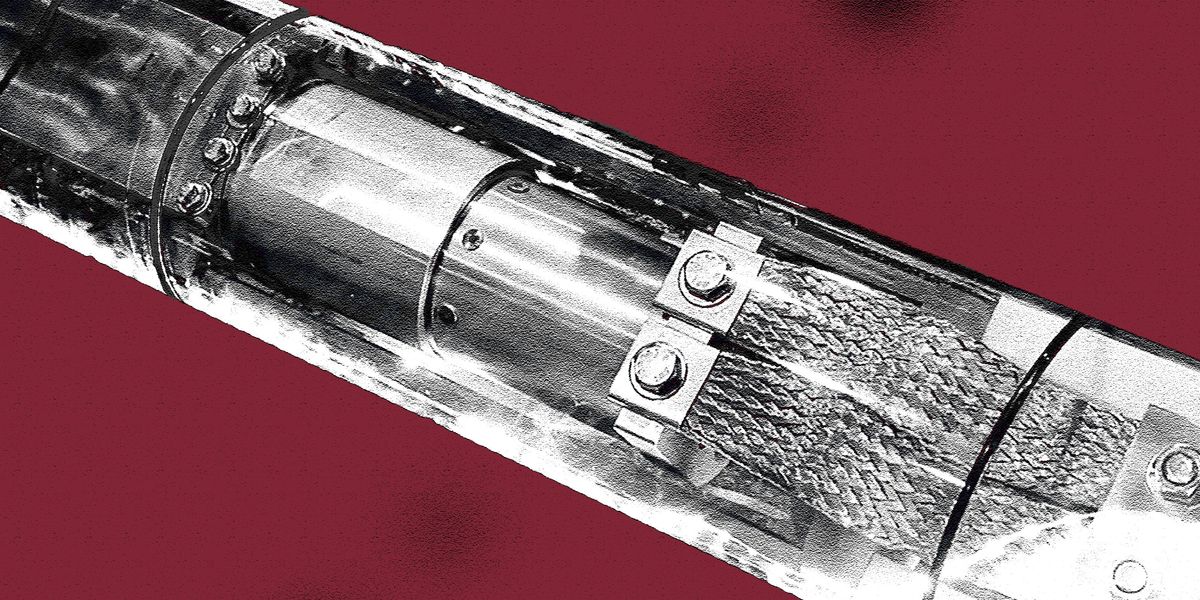

A high-voltage circuit breaker interrupter, like this one made by GE Vernova, stops present by mechanically creating a niche and an arc, after which blasting high-pressure gasoline via the hole. This halts the present by absorbing free electrons and quenching the arc because the dielectric power of the gasoline is elevated.GE Vernova
On high of that, SF6 byproducts are toxic to humans. After the gasoline quenches an arc, it may possibly decompose into substances that may irritate the respiratory system. Individuals who work on SF6-insulated gear should put on full respirators and protecting clothes. The European Union and California are phasing out using SF6 and different fluorinated gases (F-gases) in electrical gear, and several other different regulators are following go well with.
In response, researchers globally are racing to develop alternatives. Over the past 5 years, ARPA-E has funded 15 completely different early-stage circuit breaker tasks. And GE Vernova has developed merchandise for the European market that use a gasoline combination that features an F-gas, however at a fraction of the focus of standard SF6 breakers.
Reinventing Circuit Breakers With Supercritical CO2
The job of a grid-scale circuit breaker is to interrupt the move {of electrical} present when one thing goes mistaken, resembling a fault brought on by a lightning strike. These units are positioned all through substations, power generation crops, transmission and distribution networks, and industrial amenities the place gear operates in tens to a whole bunch of kilovolts.
Not like house circuit breakers, which might isolate a fault with a small air hole, grid-scale breakers want one thing extra substantial. Most high-voltage breakers depend on a mechanical interrupter housed in an enclosure containing SF6, which is a non-conductive insulating gasoline. When a fault happens, the machine breaks the circuit by mechanically creating a niche and an arc, after which blasts the high-pressure gasoline via the hole, absorbing free electrons and quenching the arc because the dielectric power of the gasoline is elevated.
In Georgia Tech’s design, supercritical carbon dioxide quenches the arc. The fluid is created by placing CO2 underneath very excessive strain and temperature, turning it right into a substance that’s someplace between a gasoline and a liquid. As a result of supercritical CO2 is sort of dense, it may possibly quench an arc and keep away from reignition of a brand new arc by lowering the momentum of electrons—or not less than that’s the speculation.
Led by Lukas Graber, head of Georgia Tech’s plasma and dielectrics lab, the analysis group will run its 72-kV prototype AC breaker via an artificial check circuit on the College of Wisconsin-Milwaukee starting in late April. They group can be constructing a 245-kV model.
The usage of supercritical CO2 isn’t new, however designing a circuit breaker round it’s. The problem was to construct the breaker with parts that may face up to the excessive strain wanted to maintain supercritical CO2, says Graber.
The staff turned to the petroleum business to search out the elements, and located all however one: the bushing. This significant part serves as a feed-through to hold present via gear enclosures. However a bushing that may face up to 120 atmospheres of strain didn’t exist. So Georgia Tech made its personal utilizing mineral-filled epoxy resins, copper conductors, metal pipes, and clean flanges.
“They’d to return to the basics of the bushing design to make the entire breaker work,” says Enslin. “That’s the place they’re making the largest contribution, in my eyes.” The compact design of Georgia Tech’s breaker will even enable it to slot in tighter areas with out sacrificing power density, he says.
Changing a substation’s current circuit breakers with this design would require some changes, together with the addition of a heat pump within the neighborhood for thermal management of the breaker.
If the assessments on the artificial circuit go effectively, Graber plans to run the breaker via a battery of real-world simulations at KEMA Laboratories‘ Chalfont, Penn. location—a gold standard certification facility.
The Georgia Tech staff constructed its circuit breaker with elements that may face up to the very excessive pressures of supercritical CO2.Alfonso Jose Cruz
GE Vernova Markets SF6-alternative Circuit Breaker
If Georgia Tech’s circuit breaker makes it to the market, it must compete with GE Vernova, which had a 20-year head begin on creating SF6-free circuit breakers. In 2018, the corporate put in its first SF6-free gas-insulated substation in Europe, which included a 145 kV-class AC circuit breaker that’s insulated with a gasoline combination it calls g3. It’s composed of CO2, oxygen and a small quantity of C4F7N, or heptafluoroisobutyronitrile.
This fluorinated greenhouse gasoline isn’t good for the surroundings both. But it surely includes lower than 5 % of the gasoline combination, so it lowers the greenhouse warming potential by as much as 99 % in contrast with SF6. That makes the warming potential nonetheless far better than CO2 and methane, nevertheless it’s a begin.
“One of many causes we’re utilizing this expertise is as a result of we will make an SF6-free circuit breaker that can truly bolt onto the precise basis of our equal SF6 breaker,” says Todd Irwin, a high-voltage circuit breaker senior product specialist at GE Vernova. It’s a drop-in alternative that can “slide proper right into a substation,” he says. Staff should nonetheless put on full protecting gear after they preserve or repair the machine like they do for SF6 gear, Irwin says. The corporate additionally makes a specific sort of breaker referred to as a dwell tank circuit breakerwith out the fluorinated part, he says.
All of those approaches, together with Georgia Tech’s supercritical CO2, rely on mechanical motion to open and shut the circuit. This takes up treasured time within the occasion of a fault. That’s impressed many researchers to show to semiconductors, which might do the switching so much sooner, and don’t want a gasoline to show off the present.
“With mechanical, it may possibly take as much as 4 or 5 cycles to clear the fault and that’s a lot vitality that you need to soak up,” says Enslin at ARPA-E. A semiconductor can doubtlessly do it in a millisecond or much less, he says. However industrial improvement of those stable state circuit breakers remains to be in early phases, and is targeted on medium voltages. “It is going to take a while to get them to the required excessive voltages,” Enslin says.
The work could also be area of interest, however the impression might be excessive. About 1 percent of SF6 leaks from electrical gear. In 2018, that translated to 9,040 tons (8,200 tonnes) of SF6 emitted globally, accounting for about 1 % of the global warming worth that 12 months.
